juniper SRX & JumpCloud dynamic vpn with NCP

The NCP remote vpn client is a  great client. Simple  to build proposals and user profiles. One negative tho,  you can not  export existing profile with ease.


I will show you howto do a ike group-based vpn . It's similar to  standard dynamic-group-vpn,  but the  ike user type is set to shared

e.g
set security ike gateway myvpngw  dynamic ike-user-type shared-ike-id      <-------


I will explain the difference on shared-ike-id vr user+group later.

Here's  a few details of the platforms involved from the  VPNserver and RADIUS-aaS


JUNOS 15.1X49-D110.4

NCP Macosx  verson3   rev35061

AUTH XAUTH

RADIUS_REMOTE  ( JUMPCLOUD )

For this vpn  settings, I  decided to use defined proposal of AES256 with  auth md5/sha1/sha256 types which we will use in the NCP client settings

ike

set security ike proposal AES256SHA1 authentication-method pre-shared-keys
set security ike proposal AES256SHA1 dh-group group5
set security ike proposal AES256SHA1 authentication-algorithm sha1
set security ike proposal AES256SHA1 encryption-algorithm aes-256-cbc
set security ike proposal AES256MD5 authentication-method pre-shared-keys
set security ike proposal AES256MD5 dh-group group5
set security ike proposal AES256MD5 authentication-algorithm md5
set security ike proposal AES256MD5 encryption-algorithm aes-256-cbc
set security ike proposal AES256SHA256 authentication-method pre-shared-keys
set security ike proposal AES256SHA256 dh-group group5
set security ike proposal AES256SHA256 authentication-algorithm sha-256
set security ike proposal AES256SHA256 encryption-algorithm aes-256-cbc

NOTE  BCPs suggest  using dhgrp 14 or stronger, but to support clients who  might have a   older vpn-client software I'm using  PFS+group5

IPSEC

set security ipsec proposal AES256SHA256 protocol esp
set security ipsec proposal AES256SHA256 authentication-algorithm hmac-sha-256-128
set security ipsec proposal AES256SHA256 encryption-algorithm aes-256-cbc
set security ipsec proposal AES256SHA256 lifetime-seconds 3600
set security ipsec proposal AES256SHA1 protocol esp
set security ipsec proposal AES256SHA1 authentication-algorithm hmac-sha1-96
set security ipsec proposal AES256SHA1 encryption-algorithm aes-256-cbc
set security ipsec proposal AES256SHA1 lifetime-seconds 3600
set security ipsec proposal AES256MD5 protocol esp
set security ipsec proposal AES256MD5 authentication-algorithm hmac-md5-96
set security ipsec proposal AES256MD5 encryption-algorithm aes-256-cbc
set security ipsec proposal AES256MD5 lifetime-seconds 3600

=======================================================

Now to wrap this up you need to set the ike and ipsec policies for the gateway


set security ike policy ike_pol_wizard_dyn_vpn mode aggressive
set security ike policy ike_pol_wizard_dyn_vpn proposals AES256MD5
set security ike policy ike_pol_wizard_dyn_vpn proposals AES256SHA1
set security ike policy ike_pol_wizard_dyn_vpn proposals AES256SHA256
set security ike policy ike_pol_wizard_dyn_vpn pre-shared-key ascii-text  "mystrongpsk"

 set security ipsec policy ipsec_pol_wizard_dyn_vpn perfect-forward-secrecy keys group5
set security ipsec policy ipsec_pol_wizard_dyn_vpn proposals AES256SHA256
set security ipsec policy ipsec_pol_wizard_dyn_vpn proposals AES256SHA1
set security ipsec policy ipsec_pol_wizard_dyn_vpn proposals AES256MD5
set security ipsec vpn wizard_dyn_vpn ike gateway gw_wizard_dyn_vpn


Now the fun starts, you will  need to set the remote-access-profile to use your   jumpcloud radius servers  and set the  src_ipv4 address for the radius-client


set access profile remote_access_profile authentication-order radius
 set access profile remote_access_profile client socpuppets firewall-user password "$9$r47KLxVwY2oJYgJDiH5TRhSyvWLxN"
set access profile remote_access_profile address-assignment pool dyn-vpn-address-pool
set access profile remote_access_profile radius-server 104.154.91.253 port 1812
set access profile remote_access_profile radius-server 104.154.91.253 secret "$9$RFcSKML7-dwY5QESyeLXUjHq.53nCtu129K8Xx-d"
set access profile remote_access_profile radius-server 104.154.91.253 source-address 10.10.10.98
set access profile remote_access_profile radius-server 104.196.54.120 port 1812
set access profile remote_access_profile radius-server 104.196.54.120 secret "$9$esuW7-wYg4JG/CKW8xbwmfTzF/pu1RKr0B7Vwsg4"
set access profile remote_access_profile radius-server 104.196.54.120 source-address 10.10.10.98
set access firewall-authentication pass-through default-profile remote_access_profile

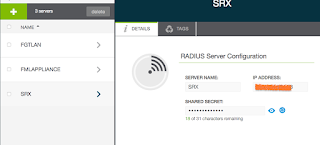

In the jumpcloud portal, you have to define the radius-client and set the shared secret and have remote-users defined

NOTE: you can execute a unix-shell and tcpdump on your interface that sends the  radius-access-request to look for radius reject or access messages,  and to confirm the radius-requests are actually going out from the Juniper SRX to the RADIUS-aaS platform.






( a no-success  login )

( a  success  login )

The NCP-vpn-client-side is configured very easily,  by setting both a IKE and IPSEC proposals and defined these in your NCP profiles.

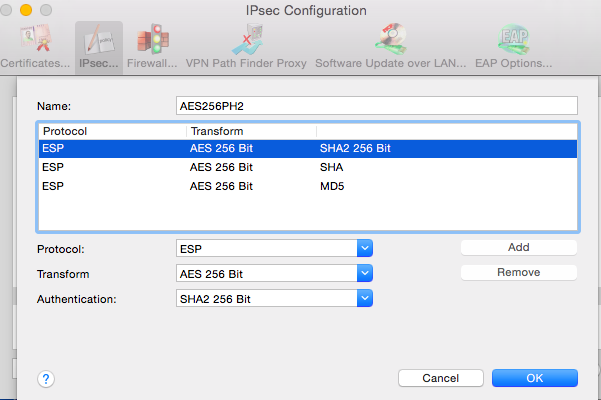

e.g defined IPSEC transform and IKEproposals











user details;



You remember the shared-ike-id thing,  that  I mention earlier ?

When  you connect into the SRX,  the  NCPvpnclient identity would be just the client-ipv4-addr and the groupname.

e.g  IKE  SA details  ( shared-ike-id)






vrs  the typical user+group-ike-id combination




The one cool item about the NCP client, it can   display almost too much details for logging and diagnostics purposes.





Here's the final  vpn configuration for dynamic-vpn
